Name: Portable Tank Horizontal and Vertical Seam Welding Machine with Flexible Rails
Brand: WINCOO
Price: 1800 USD

Brand Name : WINCOO

Model Number : WHL-III

Certification : CE,CCC

Place of Origin : CHINA

MOQ : 1 set

Price : USD+1800~4680+set

Payment Terms : L/C,D/P,T/T

Supply Ability : 100 set/month

Delivery Time : 30 days

Packaging Details : Export package

After-sales service provided : Engineers available to service machinery overseas,Video technical support

Voltage : 380v/50hz or customized

Usage : Carbon Steel welding,seam welding of metal material.

Contact Now

Product Description:
The WHL-III is a versatile and lightweight automated welding machine designed for rapid deployment and flexibility on medium to large tank projects. It excels in environments where ease of handling, quick setup, and adaptability to different welding processes (SAW, FCAW, GMAW) are key priorities. Its compact design and lower weight make it ideal for sites with space constraints or frequent repositioning needs.

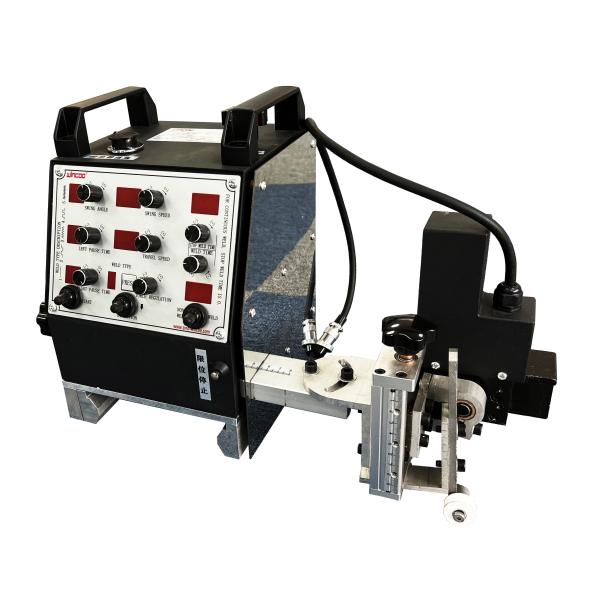

Portable Tank Horizontal and Vertical Seam Welding Machine with Flexible Rails

Key Specifications (Example):

Welding Process	Multi-process capable - SAW, FCAW (Gas-shielded & Self-shielded), GMAW (MIG)
Tank Diameter Range	200 - 1000 mm/min (8 - 40 in/min), wide range
Drive System	Compact, high-grip rubber tracks with versatile clamping (mechanical clamps standard, optional magnets)
Weight	~80 kg (176 lbs) - significantly lighter than heavy-duty models
Control System	Simple, robust digital control box with essential functions (speed, start/stop); optional basic remote
Power Source Compatibility	Wide range (200A - 650A typical for processes); standard interfaces
Welding Head	Compact design with manual adjustments. Optional limited oscillation (±25mm / ±1")
Track System	Lightweight aluminum modular tracks

Portable Tank Horizontal and Vertical Seam Welding Machine with Flexible Rails

Fabrication of medium-sized storage tanks (e.g., 10,000 - 50,000 barrels) for fuel oil, water, ethanol, or industrial chemicals.
Construction of bolted tank conversions to welded tanks.
Field erection projects where portability and quick setup are crucial.
Tank repair and maintenance work (internal or external circumferential welds).
Fabrication of agricultural silos and bulk material storage bins.
General fabrication shops handling diverse tank and vessel projects requiring a flexible welding solution.
Projects where multiple welding processes might be needed on the same tank (e.g., SAW for shells, FCAW for manways/nozzles).
